Air Plasma Cutting Machine Accessories

Air Plasma Cutting Machine Accessories

A plasma torch does its work through a small set of consumable parts. The electrode carries the arc, the swirl ring spins the air into a tight column, the nozzle narrows that column into a cutting jet, and the retaining cap and shield hold the parts in line and protect the nozzle from spatter. These parts wear a little with every arc start, and worn consumables are the most common cause of a wide kerf, bevelled edges, heavy dross and hard starting.

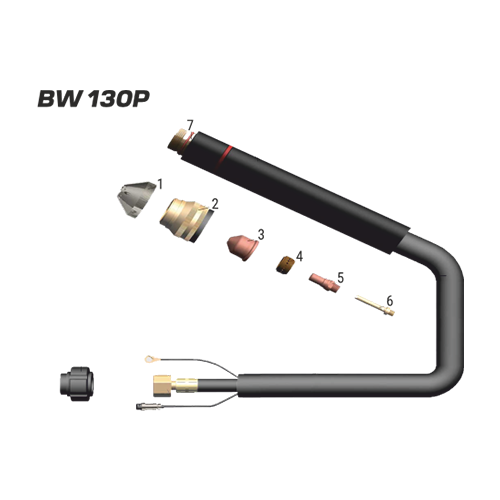

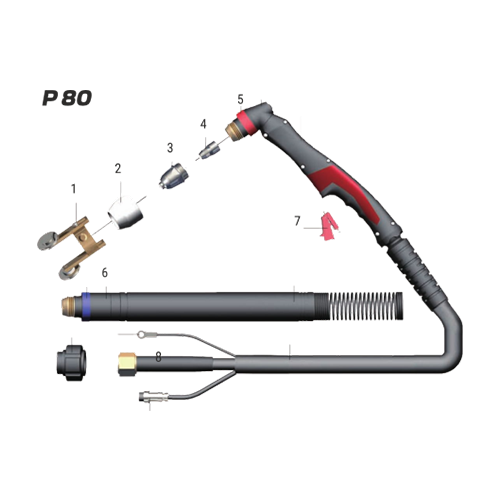

Paragweld supplies torch parts and consumables for three air plasma torch types: the P 80, the BW 125 and the BW 130P. The P 80 and BW 125 ranges include electrodes, nozzles, ceramic nozzles, hand and machine torch heads, and torch handles with switches. The BW 130P range covers the machine shield, retaining cap, nozzles, swirl ring, electrode, gas tube and the 130P torch body.

frequently asked questions (FAQ)

Check the markings on the torch head or handle, and compare your worn electrode and nozzle with the parts shown on our P 80, BW 125 and BW 130P pages. Consumables from different torch types can look similar but do not interchange. If you are unsure, send our team a photo of the torch along with the machine model and we will confirm the right parts.
The nozzle orifice is matched to the cutting current: smaller orifices for lower current and thin sheet, larger ones for higher current and thicker plate. P 80 nozzles are offered in 1.1, 1.3, 1.5 and 1.7 mm, BW 125 nozzles in 1.3, 1.5 and 1.7 mm, and BW 130P nozzles in 1.5, 1.8 and 2.1 mm. Running a small nozzle above its current wears it out very quickly.
There is no fixed interval, because wear depends on the number of arc starts, the current and the quality of the air. Replace them when the electrode shows a deep pit at its centre, the nozzle orifice has worn oval or oversized, or cuts start to show more dross, a bevelled edge or a hard arc start. Changing the electrode and nozzle together usually gives the most consistent results.
A hand torch head is fitted to a handle with a switch and is used for manual cutting. A machine torch head is a straight body designed to be clamped in the holder of a CNC table or cutting carriage. The P 80 and BW 125 ranges include both types, so you can source parts for manual and mechanised cutting from the same torch family.
The most common causes are wet or oily compressed air, air pressure outside the setting for the machine, and running more current than the nozzle is rated for. Frequent arc starts in open air, piercing thick plate with the torch too close to the surface and letting the nozzle touch the work also shorten life. Fit a good air filter and dryer, and keep the pressure at the value given for your machine.
