ARC Welder Machine Manufacturer

ARC welding (Shielded Metal Arc Welding / SMAW) is one of the most widely used welding processes in industrial manufacturing, construction, and heavy fabrication. It uses a consumable electrode coated in flux to create an electric arc between the electrode and the base metal, producing a strong, durable weld joint. Paragweld's ARC welder range is engineered for demanding environments where reliability, duty cycle, and weld quality are non-negotiable.

The range runs from the ARC 200 (20–200 A, 1.6–3.15 mm electrodes) through the ARC 300G, 300GS, 400G and 400 IJ to the ARC 630I (40–630 A, electrodes up to 6.3 mm) and the ARC 1000 (60–1000 A), whose high open-circuit voltage also suits arc gouging. Every model runs on a 3-phase 415 V supply.

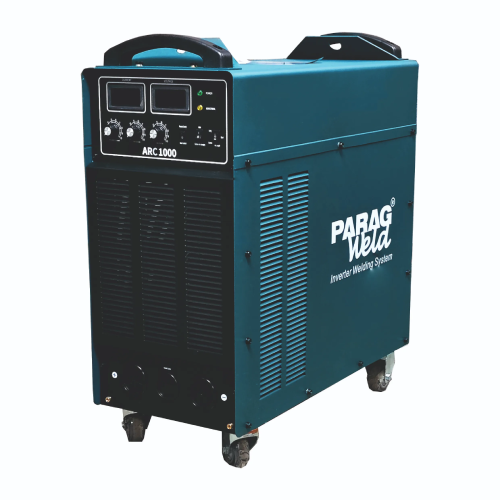

Parag Weld ARC 1000
Parag Weld ARC 1000

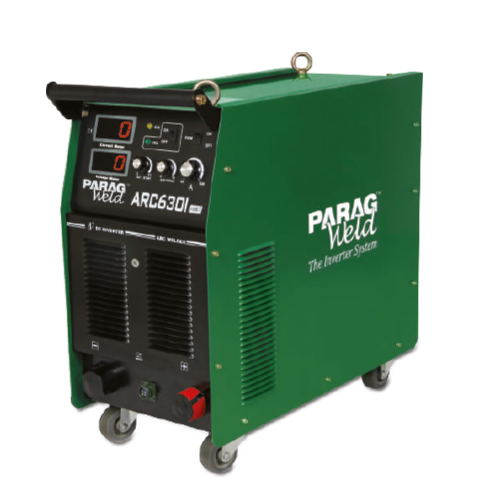

Parag Weld ARC 630I
Parag Weld ARC 630I

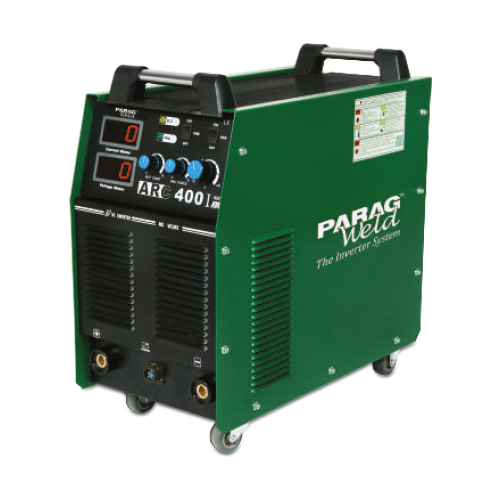

Parag Weld ARC 400 IJ
Parag Weld ARC 400 IJ

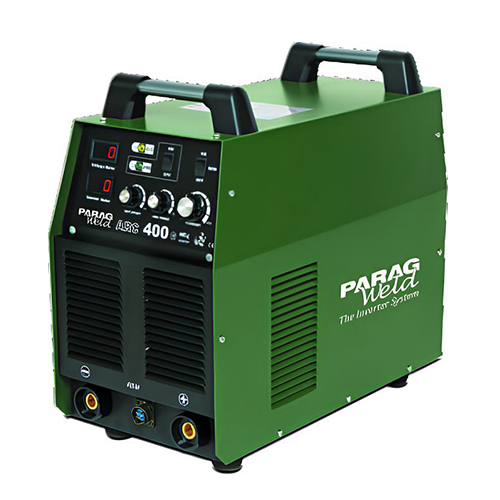

Parag Weld ARC 400G
Parag Weld ARC 400G

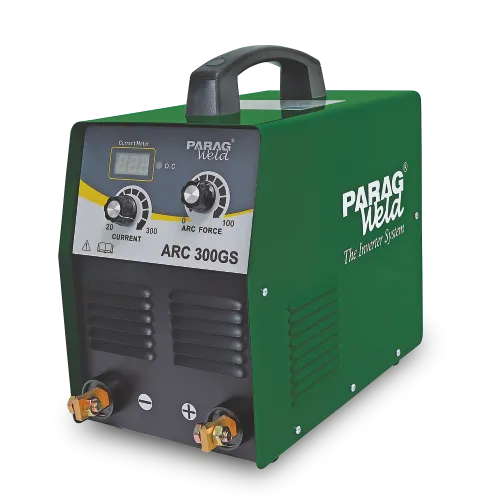

Parag Weld ARC 300GS
Parag Weld ARC 300GS
Parag Weld ARC 300GS

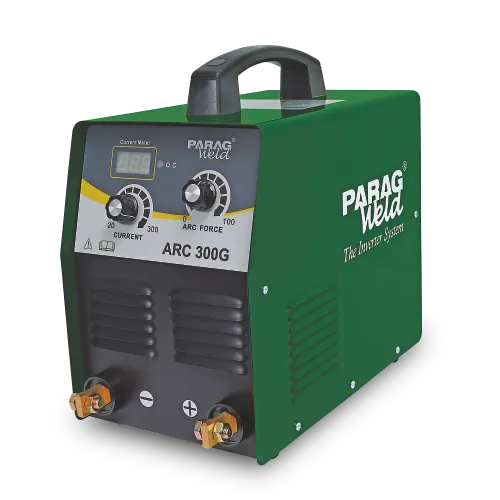

Parag Weld ARC 300G
Parag Weld ARC 200
Parag Weld ARC 200

frequently asked questions (FAQ)

Match the machine to the largest electrode you plan to burn. The ARC 200 (20-200 A) and the ARC 300G and 300GS (20-300 A) take electrodes from 1.6 to 3.15 mm. The ARC 400 IJ (40-400 A) handles up to 5.0 mm, and the ARC 630I (40-630 A) up to 6.3 mm. The ARC 1000 gives 60-1000 A for the heaviest work.
Stick welding needs no gas cylinder, because the flux coating on the electrode shields the weld. That makes it the practical choice for open sites, windy conditions, maintenance jobs and steel that is rusty or not perfectly clean. MIG is faster on long production seams and TIG gives finer control on thin metal, but for general structural and repair work a stick welder is hard to beat.
Arc force briefly raises the current when the arc gets short, for example when the electrode is pushed into the pool. This keeps the arc alive and stops the electrode sticking, which helps with basic and cellulosic electrodes and positional welding. The ARC 300G, ARC 400 IJ and ARC 630I list an adjustable arc force of 0-100 A. It is not listed for the ARC 200 or ARC 300GS.
Air carbon arc gouging needs high current and a high open-circuit voltage. The ARC 1000 is built for it, with a no-load voltage of 84 V, output up to 1000 A and a high OCV design suited to gouging as well as welding. If you want to gouge with one of the smaller models, check the carbon size and current with our team first.
Every ARC welder on this page runs on a three-phase 415 V ±15%, 50/60 Hz supply. The rated input rises with output, up to 57 kVA for the ARC 1000, so make sure your connection and cabling can carry the load of the larger models. Our team can help you size the supply for the model you choose.
