Paragweld 500 A

500 A

Product Description :-

The 500 A MIG welding accessories are replacement parts for a 500 A MIG torch, the largest pattern in the Paragweld MIG accessories range. They are used for heavy-duty MIG/MAG welding on thick plate and long production seams, where high current and large wire sizes put more load on the front end of the torch and parts need regular replacement.

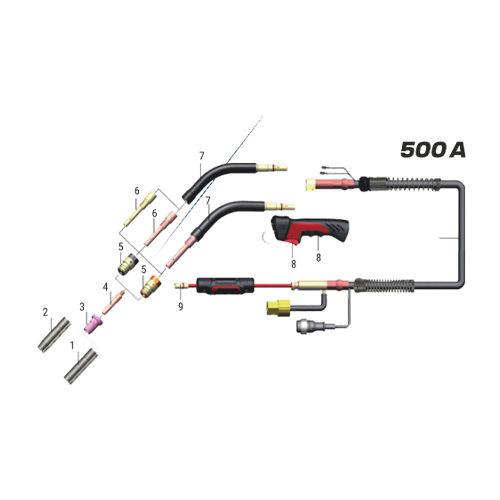

Ten items are listed: a conical nozzle, a tapered conical nozzle, a gas diffuser, an insulator, a tip holder and a swan neck, all in 500 A size, and a torch handle with switch. Contact tips come in 0.8 mm, 1.2 mm and 1.6 mm, in both copper and copper-chromium-zirconium, and MIG liners are available in 3.5 metre and 5.5 metre lengths.

Item Description
1 Conical Nozzle 500 A
2 Tapper Conical Nozzle 500 A
3 GAS Diffuser 500 A
4 Mig Tip (E - Cu Cr Zr) (0.8mm, 1.2mm, 1.6mm)
5 Mig Tip (E - cu) (0.8mm, 1.2mm, 1.6mm)
6 Insulator 500 A
7 Tip Holder 500 A
8 Swan Neck 500 A
9 Torch Handle with Switch
10 Mig Linear (3.5 Metre, 5.5 Meter)

REQUEST A QUOTE

Talk to Expert
Chat with us

Our Products

About Us

Parag Traders was established in GIDC, Vatva, Ahmedabad in 1980 by Mr.Parag Mashruwala to cater to the requirement of welding electrodes, equipments™ and accessories to various industries specialising in Fabrication, Machine Shop, Forging and Castings in Ahmedabad.

As on today
Parag Traders is known as Paragweld

In the year 1990, we were appointed exclusive stockists of "MODI ARC ELECTRODES COMPANY," Modinagar (U.P.).

In the year 2009, "SHENZHEN RILAND INDUSTRY CO. LTD." appointed us as the stockiest of their "Hitronic" brand welding equipment™ for sales and services in Western India.

40+

Years in Industry

5000+

Happy Clients

50+

Total Products

150+

Man Power

Google Review

Google rating 4.9 out of 5 stars, based on 43 reviews

User Amit Awana

Owner of the company was very humble and polite, staff was good too.

User shubham diginix

Good Quality of welding machine and best services.

User Tushar Savaliya

Vey very humble and customer friendly company with full guidance in machineries.

frequently asked questions (FAQ)

The range lists a conical nozzle, a tapered conical nozzle, a gas diffuser, an insulator, a tip holder and a swan neck in 500 A size, plus a torch handle with switch. Contact tips are listed in copper and copper-chromium-zirconium, and MIG liners in 3.5 metre and 5.5 metre lengths. Together these cover the parts of a 500 A torch that wear in use.
A 500 A torch is the natural match for the Paragweld MIG 500 Pro, which gives 50 to 500 A and takes wire from 0.8 to 1.6 mm. It is also a sensible choice on a 400 A machine that runs near full output for long periods, because a torch rated above the working current runs cooler and its parts last longer.
Large wire such as 1.6 mm is run at high currents, which heats the swan neck, contact tip and nozzle. A 500 A torch has heavier parts that handle this heat better. The 500 A range lists contact tips in 1.6 mm, in both copper and copper-chromium-zirconium, along with 0.8 mm and 1.2 mm tips for smaller wire.
Set the voltage and wire feed speed correctly for your wire size, keep a steady torch angle and stick-out, and use a suitable shielding gas. Apply anti-spatter gel or spray to the nozzle and gas diffuser, and clean spatter off before it hardens. A clean nozzle keeps the gas flowing evenly and reduces porosity in the weld.
Use the right tip size for the wire, keep the wire clean and the liner free of dirt, and avoid touching the tip to the job. Tighten the tip firmly into the tip holder so current passes cleanly without arcing at the thread. Replace tips when the bore wears oval. At 500 A class currents, Cu-Cr-Zr tips usually last well beyond plain copper tips.
Send the part names and quantities from the list on this page, for example tapered conical nozzles, 1.6 mm Cu-Cr-Zr tips or 5.5 metre liners, through the enquiry form or by calling +91 90990 14043. If you are not sure which torch pattern you have, tell our team the torch make and model and they will help you pick the matching parts.
