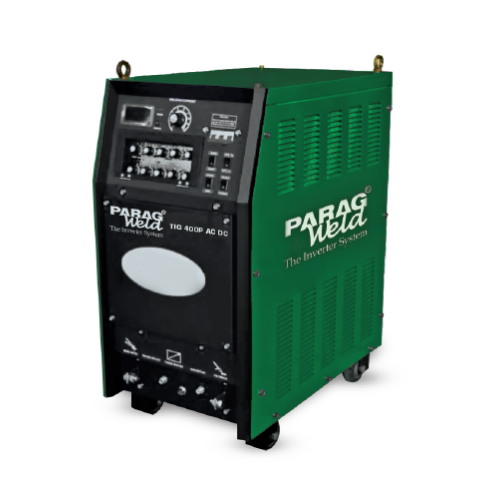

Paragweld TIG 400p AC/DC

TIG 400p AC/DC

Product Description :-

The Paragweld TIG 400p AC/DC is one of the two highest-current machines in our Pulse TIG/MMA AC/DC welder series, alongside the TIG 400p. It combines TIG and MMA welding, and as an AC/DC model it can be used on aluminium as well as mild steel and stainless steel. It is intended for industrial fabrication of heavier sections in several metals.

It runs on a three-phase AC 415 V ±15% supply at 50/60 Hz and gives an output current range of 10-400 A at a 60% duty cycle. The table lists rated input power of 23 and 16 kVA, rated input current of 27.6 and 20 A, a no-load voltage of 68 V, 85% efficiency and a power factor of 0.93. It takes wire of 1.6-3.15 mm and electrodes of 1.6-4.0 mm, has an IP21 housing, weighs 25 kg and measures 478 x 328 x 302 mm.

Parameter Value
Phase Three
Input Voltage (VIN) AC 415V ± 15%
Input Frequency (Hz) 50/60
Rated Input Power 23 & 16
Rated Input Current (Amp) 27.6 & 20
No Load Voltage (V) 68
Output Current Range 10-400
Rated Output Voltage (V) 36 & 26
No Load Loss 45
Duty Cycle (%) 60
Efficiency 85
Arcing Way
Power Factor 0.93
Insulation Grade f
Housing Protection Grade IP21
Wire & Electrode Dia. (mm) 1.6-3.15 & 1.6-4.0
Weight (Kg) 25 Kg
Dimension (mm) 478 x 328 x 302

REQUEST A QUOTE

Talk to Expert
Chat with us

Our Products

About Us

Parag Traders was established in GIDC, Vatva, Ahmedabad in 1980 by Mr.Parag Mashruwala to cater to the requirement of welding electrodes, equipments™ and accessories to various industries specialising in Fabrication, Machine Shop, Forging and Castings in Ahmedabad.

As on today
Parag Traders is known as Paragweld

In the year 1990, we were appointed exclusive stockists of "MODI ARC ELECTRODES COMPANY," Modinagar (U.P.).

In the year 2009, "SHENZHEN RILAND INDUSTRY CO. LTD." appointed us as the stockiest of their "Hitronic" brand welding equipment™ for sales and services in Western India.

40+

Years in Industry

5000+

Happy Clients

50+

Total Products

150+

Man Power

Google Review

Google rating 4.9 out of 5 stars, based on 43 reviews

User Amit Awana

Owner of the company was very humble and polite, staff was good too.

User shubham diginix

Good Quality of welding machine and best services.

User Tushar Savaliya

Vey very humble and customer friendly company with full guidance in machineries.

frequently asked questions (FAQ)

The TIG 400p AC/DC is used for heavier TIG welding on aluminium, stainless steel and mild steel, such as thick aluminium parts, tanks, frames and pipe work. With a 10-400 A range it can also handle thin material at low settings, and its MMA function lets you run stick electrodes for tacking and repair work.
It needs a three-phase AC 415 V supply (±15%) at 50/60 Hz. The table lists rated input power of 23 and 16 kVA and rated input current of 27.6 and 20 A. Have a qualified electrician install a dedicated supply with cable, isolator and breaker sized for these figures.
Both are three-phase AC/DC models with a 60% duty cycle. The TIG 400p AC/DC reaches 400 A and lists electrodes up to 4.0 mm, while the 315p AC/DC reaches 315 A and lists up to 3.15 mm. The 400p AC/DC is also lighter at 25 kg, against 30 kg for the 315p AC/DC. Choose it for thicker aluminium and steel.
Aluminium has an oxide layer that melts at a far higher temperature than the metal itself. The AC output breaks up this layer as you weld, so the filler and base metal can fuse cleanly. Thick aluminium also soaks up heat quickly, which is where the higher current of the TIG 400p AC/DC is useful.
The specification table lists wire diameters of 1.6-3.15 mm and electrode diameters of 1.6-4.0 mm. The 4.0 mm upper electrode size, together with the 400 A output, lets the machine handle heavier stick welding and thicker TIG joints than the smaller models in the series.
The machine weighs 25 kg and measures 478 x 328 x 302 mm. Place it on a level surface with clear space around the vents for cooling air. Its IP21 housing should be kept dry and out of the rain. Clean out dust from time to time with the power off, and check cables, torch and earth clamp before each shift.
