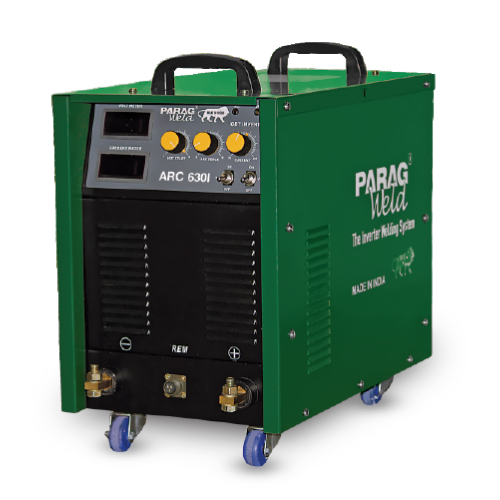

Paragweld ARC 630 I Machine

Paragweld ARC 630 I

Product Description :-

Manual Metal Arc Welding, also know as Shielded Metal Arc Welding, Flux Shielded Arc Welding or informally as stick welding, is a manual arc welding process that uses a consumable electrode coted in flux to lay the weld. An electrode current, in the form of either AC or DC from a welding power supply, is used to from an electric arc between the electrode and the metal to be joined.

Because of versatility of process and simplicity of its equipments and operation, shielded metal arc welding is one of the worlds most popular welding processes. The process is used primarily to weld and steels (including stainless steel) but Aluminium, Nickel and Copper Alloys can also be welded with this method.

PARAMETERS ARC 630 I
Phase Three
Input Voltaw (Vin) AC 415V ± 15%
Input Freuncy (Hz) 50/60
Rated Input Power (kVA) 17.15
Rated Input Current (Amp) 23.9
No Load Voltage (V) 68
Output Current Range (A) 40-630
Rated Output Voltage (V) 44
Force Range (A) 0-100
Duty Cycle (%) 60
No Load Loss (W) 150
Efficiency (%) 85
Power Factory 0.93
Insulation Grade F
Housing Protection Grade IP21
Electrode Dia. (mm) 1.6*6.30
Weight (Kg) 54
Dimension (mm) 670 x 320 x 640

REQUEST A QUOTE

Talk to Expert
Chat with us

Our Products

About Us

Parag Traders was established in GIDC, Vatva, Ahmedabad in 1980 by Mr.Parag Mashruwala to cater to the requirement of welding electrodes, equipments™ and accessories to various industries specialising in Fabrication, Machine Shop, Forging and Castings in Ahmedabad.

As on today
Parag Traders is known as Paragweld

In the year 1990, we were appointed exclusive stockists of "MODI ARC ELECTRODES COMPANY," Modinagar (U.P.).

In the year 2009, "SHENZHEN RILAND INDUSTRY CO. LTD." appointed us as the stockiest of their "Hitronic" brand welding equipment™ for sales and services in Western India.

40+

Years in Industry

5000+

Happy Clients

50+

Total Products

150+

Man Power

Google Review

Google rating 4.9 out of 5 stars, based on 43 reviews

User Amit Awana

Owner of the company was very humble and polite, staff was good too.

User shubham diginix

Good Quality of welding machine and best services.

User Tushar Savaliya

Vey very humble and customer friendly company with full guidance in machineries.

frequently asked questions (FAQ)

The ARC 630 I (Indian Make) is a heavy-duty three-phase stick (MMA) welding machine with a 40-630 A output range. It is aimed at heavy fabrication, thick plate and structural work where large diameter electrodes and high current are needed, in fabrication shops, workshops and industrial sites.
The ARC 630 I accepts electrodes from 1.6 mm up to 6.3 mm diameter. That lets one machine cover small electrodes for light work and large 5 mm and 6.3 mm electrodes for heavy joints and fast filling. Set the current within the range given on the electrode packet for best results.
The ARC 630 I is listed with a 60% duty cycle. At its rated output it can weld for about 6 minutes in every 10 and then needs about 4 minutes to cool. When you weld at lower current it can run for longer periods, which suits long fabrication shifts with normal breaks for electrode changes.
The ARC 630 I runs on a three-phase 415 V AC supply (plus or minus 15%) at 50/60 Hz. A 630 A machine draws a large input load, so please confirm the exact input rating with our team and have an electrician check your breaker, input cable size and earthing before installation.
The ARC 400 gives 40-400 A and takes electrodes up to 5.0 mm. The ARC 630 I goes up to 630 A and takes electrodes up to 6.3 mm, so it suits thicker material and heavier welding. Both list an adjustable force range of 0-100 A. Choose the ARC 630 I only if your work needs the extra current.
The ARC 630 I weighs 54 kg and measures 670 x 320 x 640 mm, so move it with two people or a trolley. It has Class F insulation and an IP21 housing, so keep it indoors or under cover with space around the vents. Disconnect power before cleaning out dust, and check cables and the earth clamp regularly.
