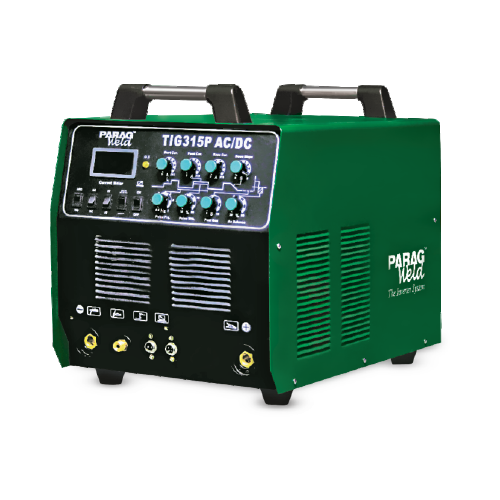

Paragweld Pulse TIG 315p AC/DC

TIG 315p AC/DC

Product Description :-

The Paragweld Pulse TIG 315p AC/DC is a three-phase welding machine in our Pulse TIG/MMA AC/DC welder series, combining TIG and MMA welding in one power source. As an AC/DC model, it suits fabrication shops that weld aluminium as well as mild steel and stainless steel, and that need more current than the single-phase 200 A models provide.

It runs on a three-phase AC 415 V ±15% supply at 50/60 Hz and covers an output current range of 10-315 A at a 60% duty cycle. The table lists rated input power of 12.9 and 8.9 kVA, rated input current of 19.6 and 13.5 A, a no-load voltage of 54 V, 85% efficiency and a power factor of 0.93. It takes wire and electrodes of 1.6-3.15 mm, has class F insulation and an IP21 housing, weighs 30 kg and measures 570 x 364 x 540 mm.

Parameter Value
Phase Three
Input Voltage (VIN) AC 415V ± 15%
Input Frequency (Hz) 50/60
Rated Input Power 12.9 & 8.9
Rated Input Current (Amp) 19.6 & 13.5
No Load Voltage (V) 54
Output Current Range 10-315
Rated Output Voltage (V) 22.6
No Load Loss 50
Duty Cycle (%) 60
Efficiency 85
Arcing Way --
Power Factor 0.93
Insulation Grade F
Housing Protection Grade IP21
Wire & Electrode Dia. (mm) 1.6-3.15 & 1.6-3.15
Weight (Kg) 30
Dimension (mm) 570 x 364 x 540

Inquiry Now

Talk to Expert
Chat with us

Our Products

About Us

Parag Traders was established in GIDC, Vatva, Ahmedabad in 1980 by Mr.Parag Mashruwala to cater to the requirement of welding electrodes, equipments™ and accessories to various industries specialising in Fabrication, Machine Shop, Forging and Castings in Ahmedabad.

As on today
Parag Traders is known as Paragweld

In the year 1990, we were appointed exclusive stockists of "MODI ARC ELECTRODES COMPANY," Modinagar (U.P.).

In the year 2009, "SHENZHEN RILAND INDUSTRY CO. LTD." appointed us as the stockiest of their "Hitronic" brand welding equipment™ for sales and services in Western India.

40+

Years in Industry

5000+

Happy Clients

50+

Total Products

150+

Man Power

Google Review

Google rating 4.9 out of 5 stars, based on 43 reviews

User Amit Awana

Owner of the company was very humble and polite, staff was good too.

User shubham diginix

Good Quality of welding machine and best services.

User Tushar Savaliya

Vey very humble and customer friendly company with full guidance in machineries.

frequently asked questions (FAQ)

The Pulse TIG 315p AC/DC suits fabrication and maintenance shops that weld aluminium, stainless steel and mild steel from thin sheet up to medium sections. Its 10-315 A output range gives more headroom than the 200 A models, and because it combines TIG and MMA welding, the same machine can also run stick electrodes when needed.
It needs a three-phase AC 415 V supply (±15%) at 50/60 Hz. The table lists rated input power of 12.9 and 8.9 kVA and rated input current of 19.6 and 13.5 A. Share these figures with your electrician so the cable, isolator and breaker are sized correctly for the machine.
It is the middle AC/DC model. The TIG 200p AC/DC runs on single-phase 220 V for smaller workshops, while the TIG 400p AC/DC reaches 400 A and lists electrodes up to 4.0 mm. The 315p AC/DC covers 10-315 A on three-phase 415 V, which suits shops that want more current than a 200 A machine without going to 400 A.
Yes, that is the main reason to choose an AC/DC model. Aluminium has a tough oxide layer that an AC output breaks up during welding, which is why AC TIG is the usual process for aluminium and its alloys. For mild steel, stainless steel and copper, DC TIG is used. The 315p AC/DC lets you do both on one machine.
The specification table lists wire and electrode diameters of 1.6-3.15 mm. This range covers most sheet, tube and medium-section work in aluminium and steel. If you regularly need 4.0 mm electrodes and currents up to 400 A, the TIG 400p AC/DC in the same series is the larger option.
The machine weighs 30 kg and measures 570 x 364 x 540 mm, so plan to move it on a trolley or with two people. Place it on a level surface with space around the vents for cooling air. The housing is rated IP21 with class F insulation, so keep it indoors or covered and away from water.
